SPECIFICATIONS
Brand Name: XiongCai
Hign-concerned Chemical: None
Origin: Mainland China
Printing method: Thermal printing
Print head lifespan: 30km (tested for printing coverage of 12.5%)
Resolution: 203dpi
Connection methods: USB, Bluetooth 5.2, WiFi 6 (2.4G/5G)
Maximum printing width: 108mm
Maximum printing speed: 152mm/S

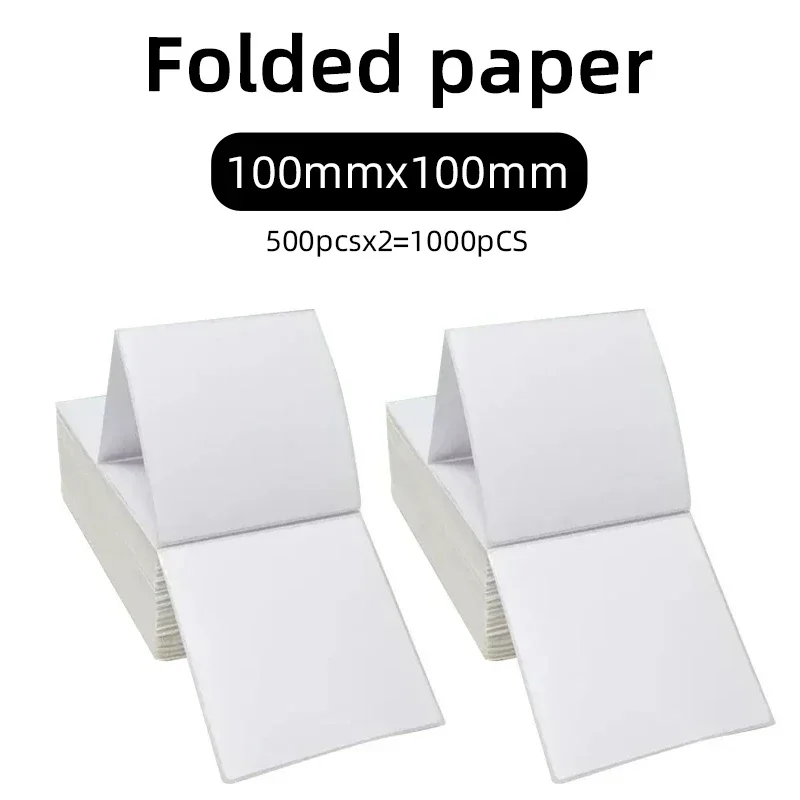

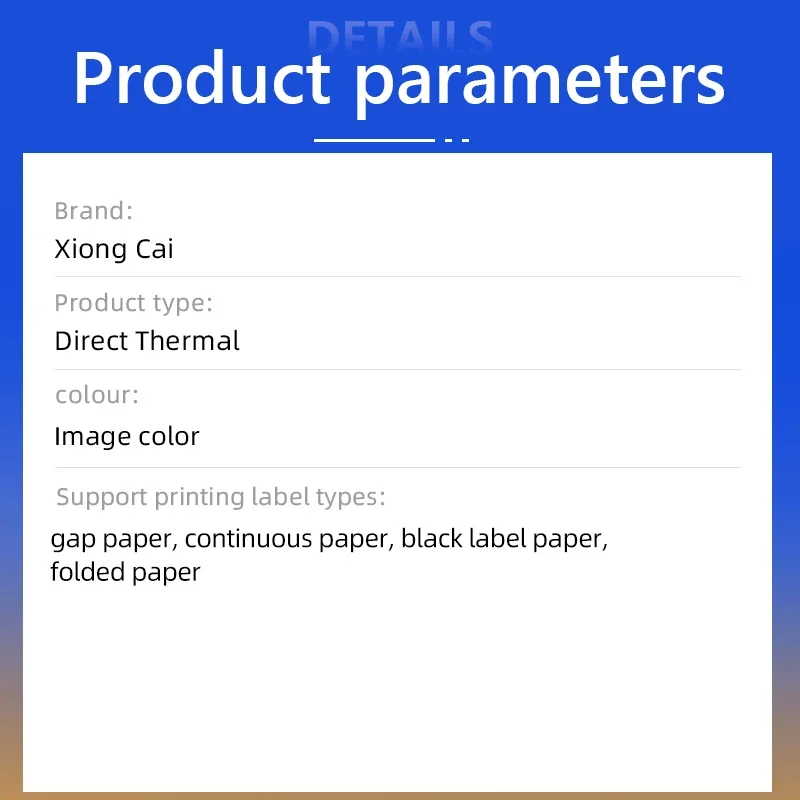

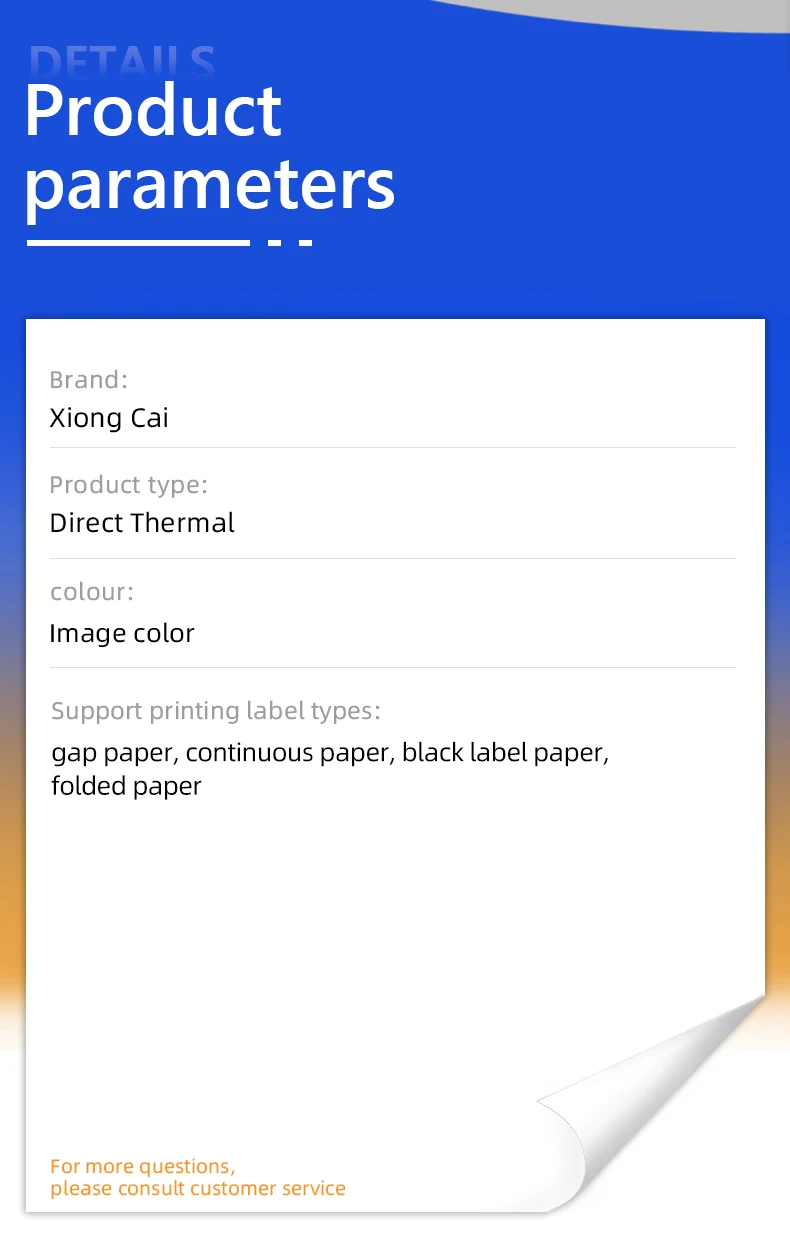

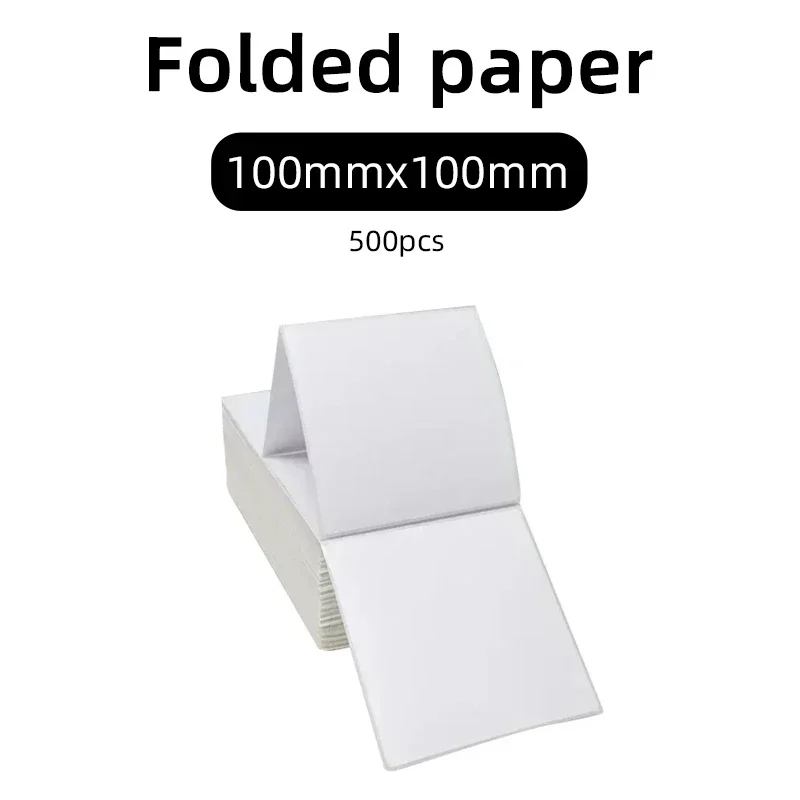

Support printing label types: gap paper, continuous paper, black label paper, folded paper

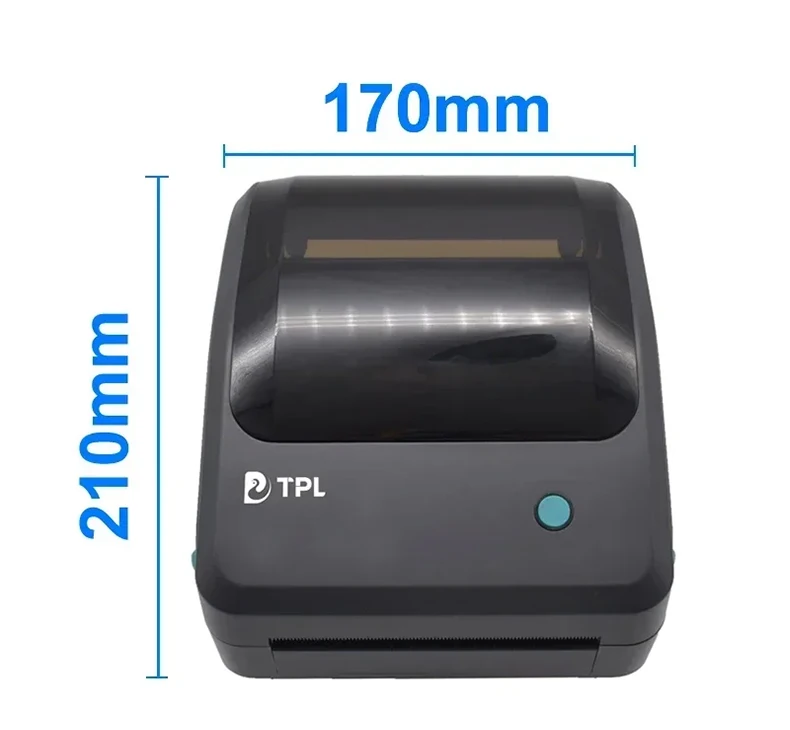

Size: 210 × 168.5 × 152.5mm
Weight: 0.9kg
Central processing unit: 32-bit high-efficiency processor
Maximum printing length: 1778mm
Support printing label width: 30-114mm
Support printing label thickness: 0.12~0.26mm

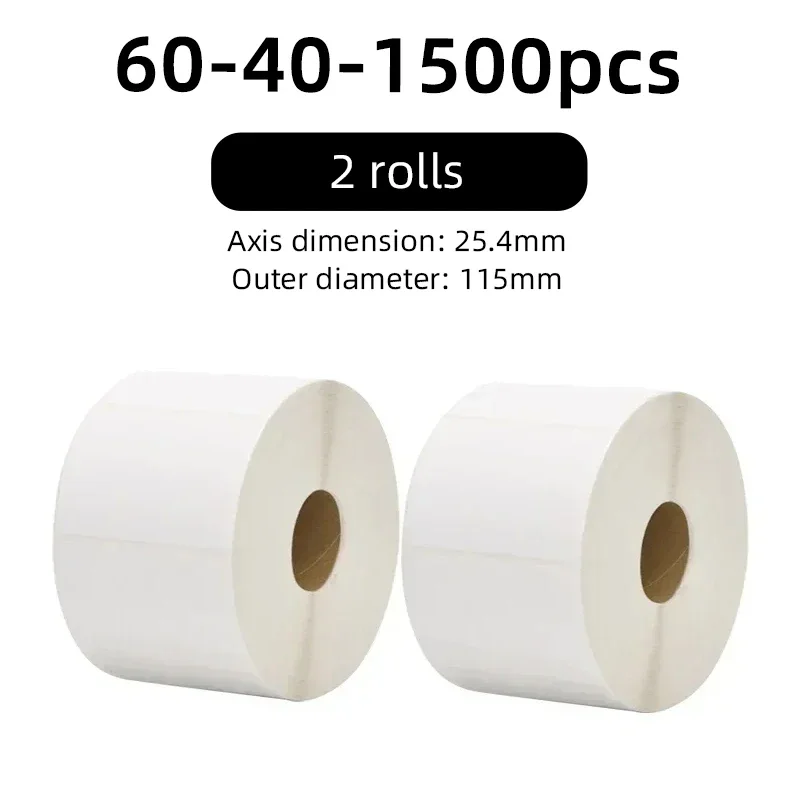

Support printing label outer diameter: 120mm

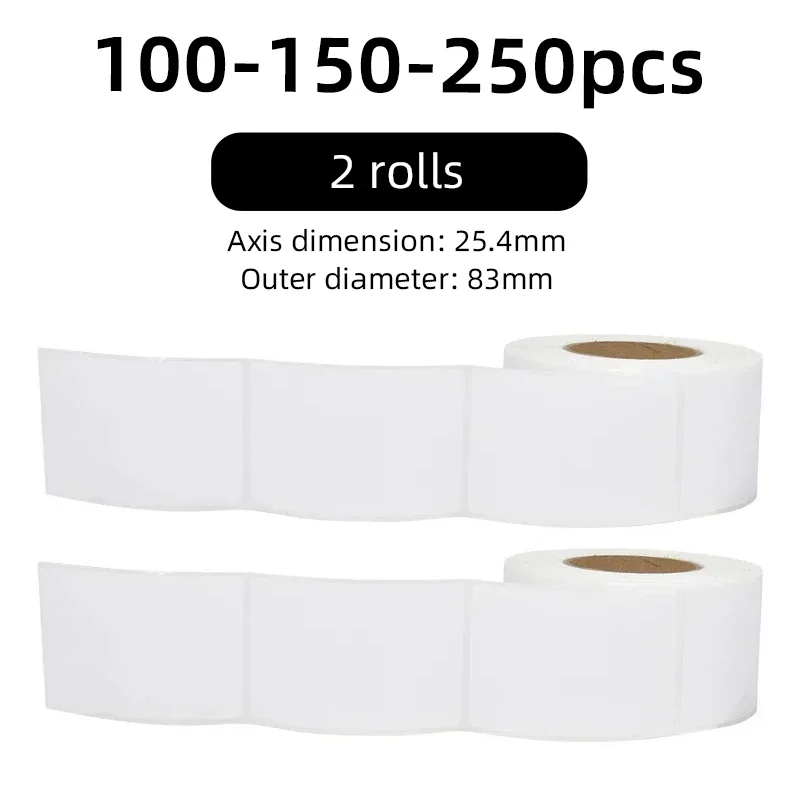

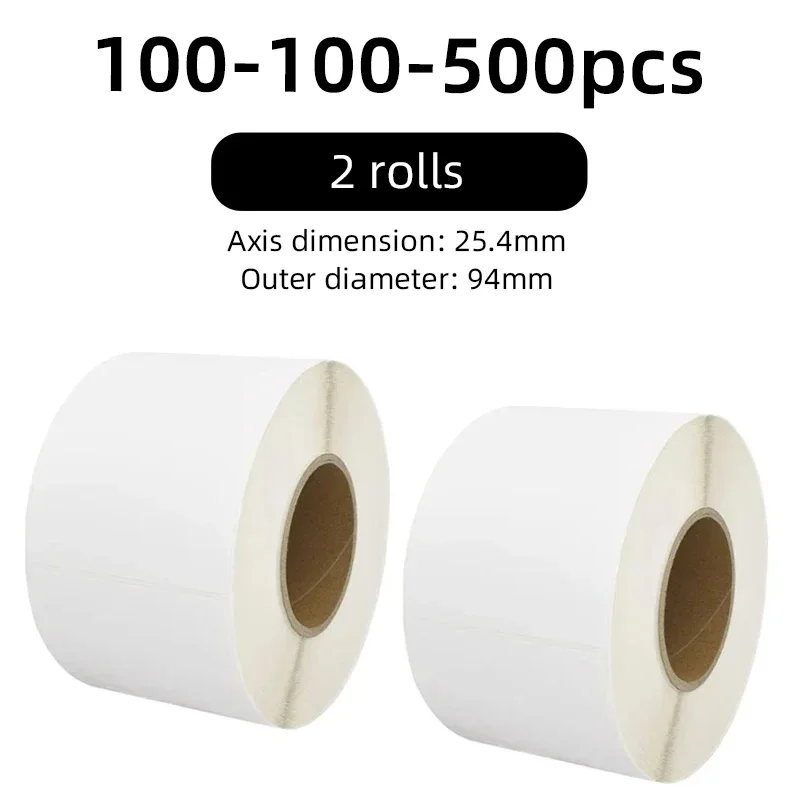

Axis inner diameter: 25.4mm (1 inch)

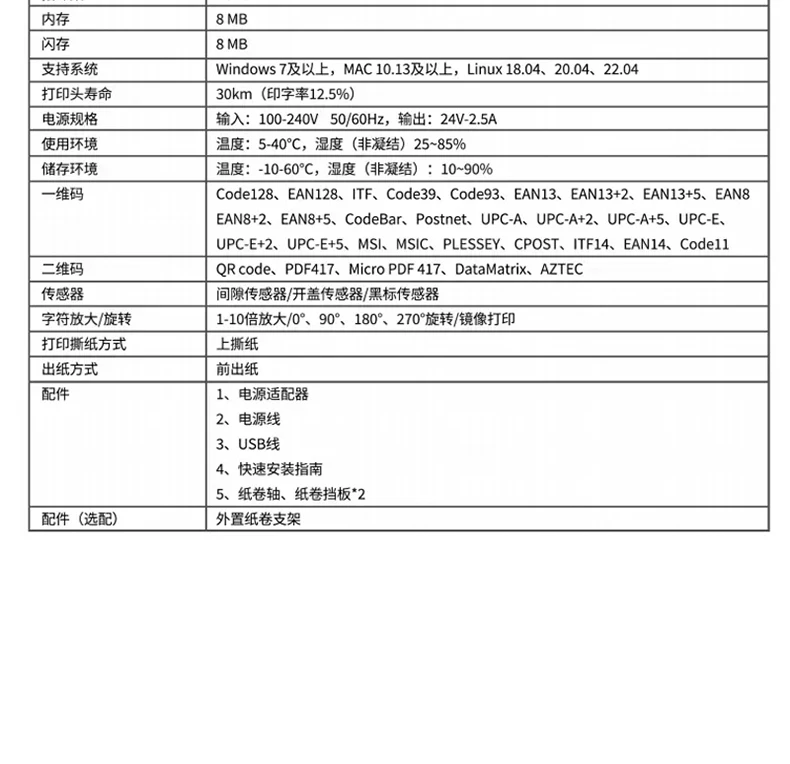

Memory capacity: 8MB
Flash storage capacity: 8MB
Supported systems: Windows 7 and above, MAC 10.13 and above, Linux18.04,20.04,22.04
Input voltage: 100-240V 50/60Hz
Output voltage: 24V-2.5A
Usage environment: Temperature 5-40 ℃, humidity (non condensing) 25-85%
Storage environment: Temperature -10-60 ℃, humidity (non condensing) 10-90%
Support printing one-dimensional codes: Code128 EAN128,ITF,Code39,Code93,EAN13,EAN13+2,
EAN13+5,EAN8EAN8+2,EAN8+5,CodeBar,Postnet,UPC-A,UPC-A+2,
UPC-A+5,UPC-E,UPC-E+2,UPC-E+5,MSI,MSIC,PLESSEY,CPOST,
ITF14,EAN14,Code11
Support printing QR codes: QR codes PDF417,Micro PDF417,DataMatrix,AZTEC
Sensors: gap sensor, lid opening sensor, black label sensor
Character enlargement/rotation: 1-10 times enlargement/0 °, 90 °, 180 °, 270 ° rotation/mirror printing

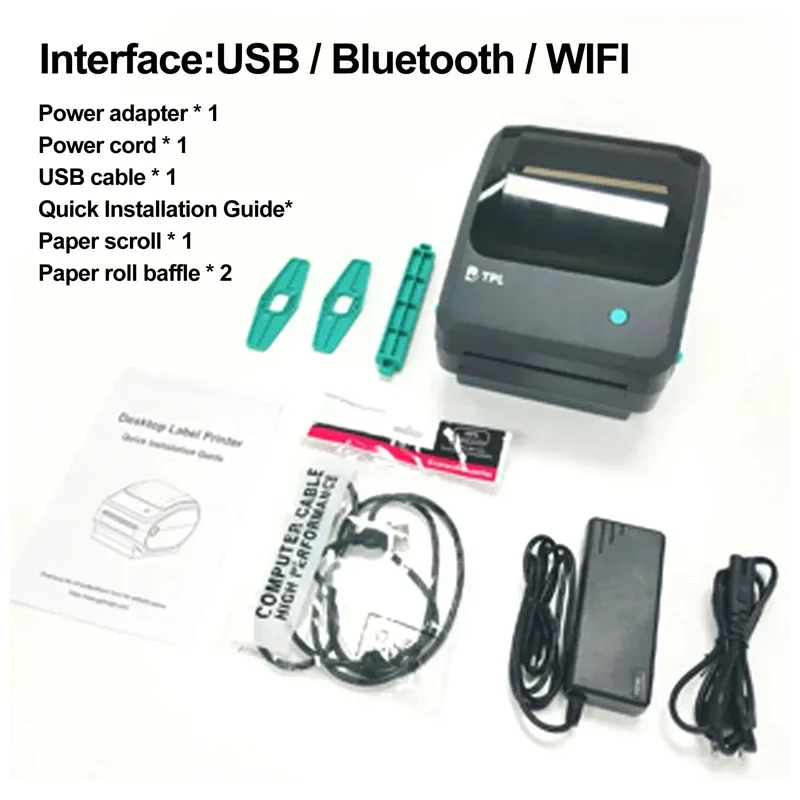

Accessories:
1. Power adapter
2. Power cord
3. USB cable
4. Quick Installation Guide
5. Paper scroll, paper roll baffle * 2
